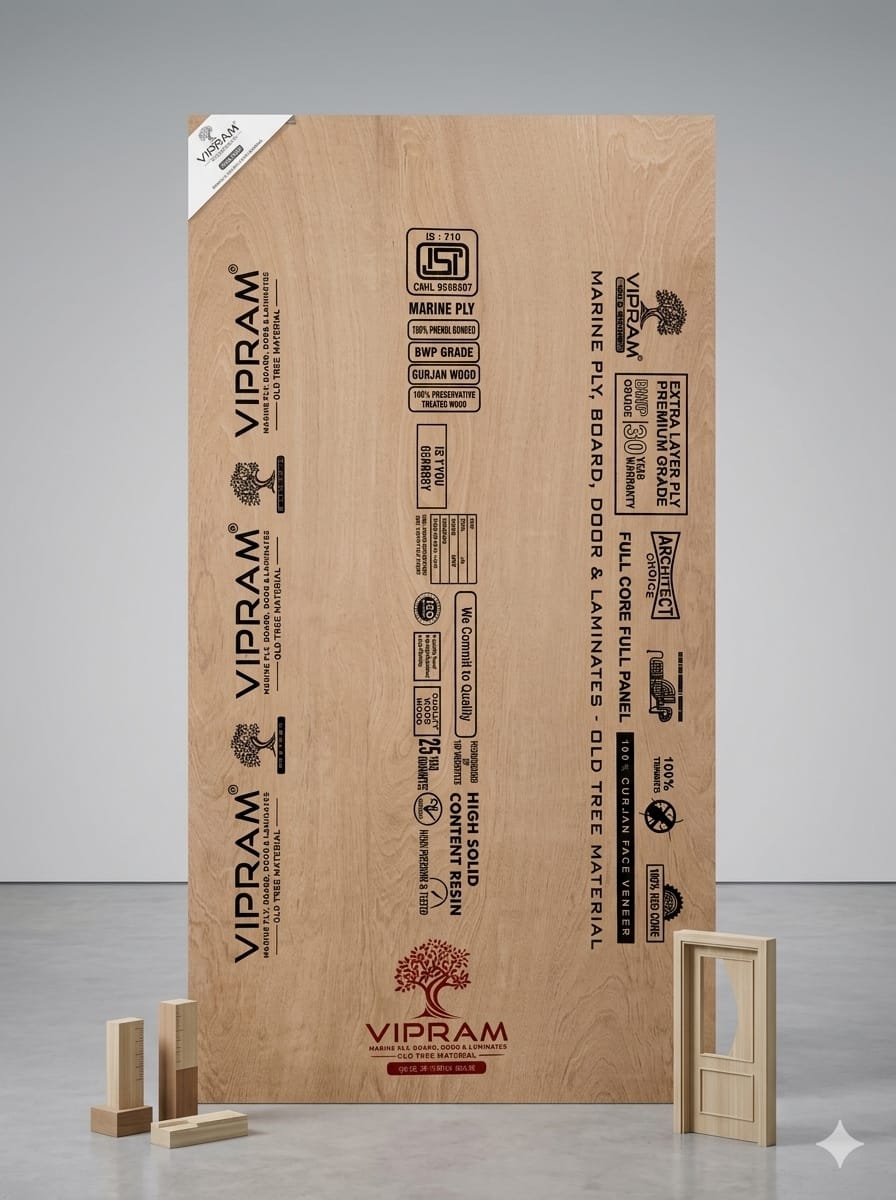

VIPRAM PLY / HARDWOOD EXTRA LINE
HARDWOOD EXTRA LINE PLY
VIPRAM Hardwood Extra Line Ply is described in the supplied product information as a premium hardwood range made from 100% hardwood lumber, with multi-laminate hardwood veneers and a rotary Gurjan face.
The supplied description highlights strength, face-veneer quality, treatment against termites and borers, and stability across damp and dry conditions.
Product overview
Hardwood strength for
demanding applications.
Hardwood Extra Line Ply overview
The supplied product description identifies this range as being made from 100% hardwood lumber, using multi-laminate hardwood veneers and a high-quality rotary Gurjan face. It is intended for applications where strength and face-veneer quality are important.
The description also states that the plywood is treated using water-soluble fixed-type preservatives under vacuum pressure to help protect against wood-destroying organisms, including insects, borers, termites and fungi.
Construction and performance
The supplied feature list mentions waterproof PF resin, double pressing, calibrated thickness, a pre-jointed wider core and panel, and high nail-holding capacity.
The product material supplied for this page identifies IS:710 criteria and provides the technical values shown in the table below. Values are transcribed from that supplied table.
Product highlights
KEY FEATURES
Made with 100% hardwood timber
Bonded with waterproof PF resin
Treated against termite and borer
Double pressed for extra strength
Calibrated for consistent thickness
Pre-jointed wider core and panel
Waterproof panel
High nail-holding capacity
Available dimensions
SIZES & THICKNESS
8 × 4 ft
7 × 4 ft
6 × 4 ft
6 × 3 ft
19 mm thickness
20 mm thickness
Technical information
Technical specifications (IS:710:2024)
| Test / Dimension | ISI Requirement | Observed Value |
|---|---|---|
| Length | 2440 +6 / −0 mm | 2442 mm |
| Width | 1220 +3 / −0 mm | 1222 mm |
| Thickness | 19 mm ± 5% | 18.60 mm |
| Squareness | ≤ 0.10% | 0.10% |
| Edge Straightness | ≤ 0.20% | 0.03% |
| Density | 0.65 | 0.68 |
| Moisture Content | 5–15% | 7.25% |
| Adhesive of Plies (dry state) | Some solvent fibre distributed more or less uniformly | Satisfactory |
| Adhesive of Plies (wet state) | Do | Satisfactory |
| Glue Shear Strength (dry state) | Average: 1350 N; minimum individual: 1100 N | Average: 1420 N; minimum individual: 1200 N |
| Glue Shear Strength (wet state) | Average: 3000 N; minimum individual: 360 N | Average: 3272 N; minimum individual: 390 N |
| Tensile Strength | Along grain: min. 35 N/mm²; across grain: min. 25 N/mm²; sum: min. 84.5 N/mm² | Along grain: 60.05 N/mm²; across grain: 38.24 N/mm²; sum: 98.29 N/mm² |
| Static Bending Strength — Dry State, Modulus of Elasticity (M.O.E.) | Along grain: average 6430, minimum 5700 N/mm²; across grain: average 3650, minimum 4100 N/mm² | Along grain: 8500 / 7250 N/mm²; across grain: 5052 / 4434 N/mm² |
| Static Bending Strength — Dry State, Modulus of Rupture (M.O.R.) | Along grain: average 43, minimum 38 N/mm²; across grain: average 35, minimum 33 N/mm² | Along grain: 55 / 46 N/mm²; across grain: 49 / 41 N/mm² |
| Static Bending Strength — Wet State, Modulus of Elasticity (M.O.E.) | Along grain: average 3320, minimum 2600 N/mm²; across grain: average 2230, minimum 2100 N/mm² | Along grain: 4530 / 3770 N/mm²; across grain: 2680 / 2427 N/mm² |
| Static Bending Strength — Wet State, Modulus of Rupture (M.O.R.) | Along grain: average 22, minimum 18 N/mm²; across grain: average 17, minimum 15 N/mm² | Along grain: 26 / 24 N/mm²; across grain: 21 / 19 N/mm² |
| Retention of Preservatives (ACQ) | Minimum 12 kg/m³ | 12.98 kg/m³ |
| Mycological Test — No Separation Sign | Average 3000 N; individual 800 N; adherent fibre distributed more or less uniformly | Satisfactory; 1200 N; 1600 N; Excellent |
VIPRAM HARDWOOD EXTRA LINE
MADE FOR STRENGTH
Premium hardwood plywood details, as provided for this product page.
Waterproof PF Resin
Termite & Borer Treatment
Calibrated Thickness
High Nail Holding Capacity
